SG-S600W CNC double-head cutting saw

Certification
Good quality aluminum processing machine for sales
I'm Online Chat Now

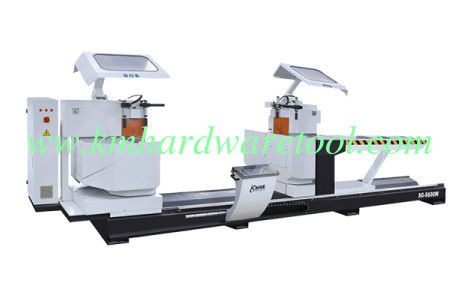

SG-S600W CNC double-head cutting saw

China SG-S600W CNC double-head cutting saw supplier
SG-S600W CNC double-head cutting saw supplier SG-S600W CNC double-head cutting saw supplier SG-S600W CNC double-head cutting saw supplier SG-S600W CNC double-head cutting saw supplier

Large Image :  SG-S600W CNC double-head cutting saw

Product Details:

Place of Origin: china
Brand Name: KM
Model Number: SG-S600W CNC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Regular export packing
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Pieces per Month
Contact Now
Detailed Product Description
Machine Size: 7500mmX1600mmX1860mm Machine Weight: 2050kg

SG-S600W

CNC double-head cutting saw



The machine is mainly used for cutting aluminum alloy doors and Windows, sun room, aluminum curtain wall and industrial aluminum multi-angle cutting, two head vertical (45-90 degrees) can realize arbitrary rotary swing Angle cutting and the workbench’s level (22.5 degrees – 135 degrees) at any Angle cutting, imported CNC positioning system, two head controlled by servo motor driven ball screw vertical pendulum Angle, the workbench’s level rotation at any Angle by servo reducer and high-precision measuring arc discussed.

As long as the touch screen to set the parameters, you need the machine will automatically detect adjust to what you need data, ranging accuracy is high, operation is stable, reliable, is to improve the production efficiency and machining precision of the ideal equipment.

SG-S600W CNC double-head cutting saw

Technical Parameters

power 380V/50HZ The Angle cutting size 90°=300mmX170mm
Total power 10.6KW 45°=200mmX140mm
Motor power 2X4KW The level of The Angle cutting size 45°=210mmX170mm
blade rotary speed 2840r/ min 22.5°=115mmX170mm
positioning servo motor 0.75KW saw blade Ø600mmX38X4.4X144T
positioning tolerance ±0.05 mm blade feeding speed 0-10m/min
Angular Angle Motor power 2X0.4KW cutting length 360mm-4800/5800mm
Swing Angle Motor power 2X0.75KW air pressure 0.6-0.8Mpa
Tilting tolerance ±3` cooling mist cooling
contact touch screen size 10.2″ control mode contact touch screen input
Machine dimension 7500mmX1600mmX1860mm machine weight 2050kg
