Saw Cutting Length: | 480-4500mm | Saw Cutting: | 230x150mm |
---|---|---|---|
Main Motor Power: | 3.0KW X 2 | Main Motor Speed: | 2840r/min |
Saw Blade Size: | 500x30x120T | Saw Feeding Speed: | 0-3m/min |
Saw The Return Rate Of: | 2-3m/min | Saw Blade Swing Angle: | 90-45 |
Table Can Be Rotated Angle: | 0-45 | Working Pressure: | 0.6-0.8Mpa |
Working Voltage: | 380v | Overall Dimension: | 5850x1310x1360mm |
Weight: | 1800kg |

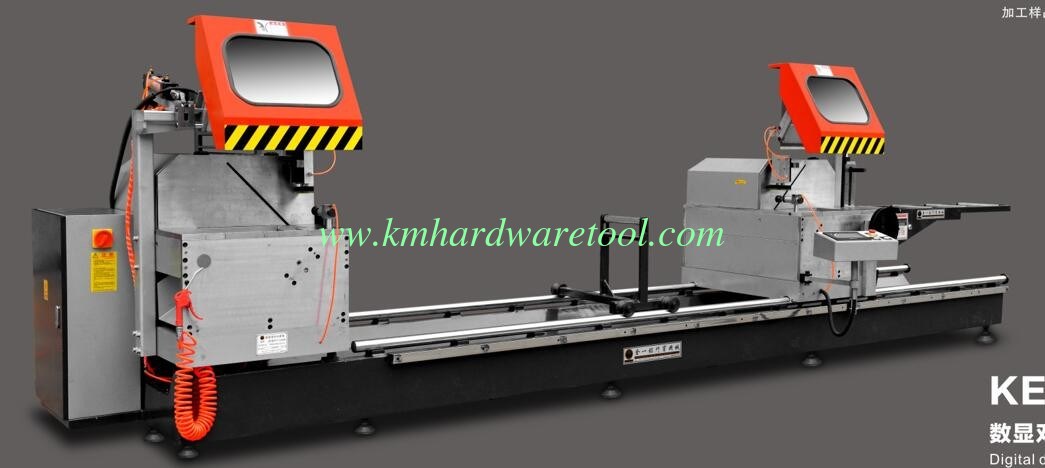

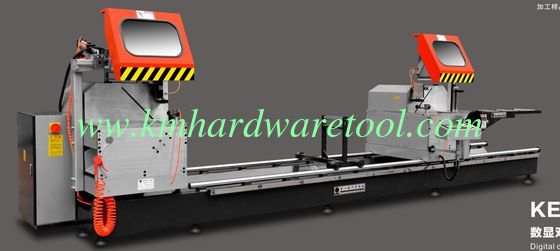

is used for cutting aluminum alloy window and curtain wall profile, may also used for cutting plastic profile.
Adopted the hard quality alloy saw blades, the external diameter can reach 20″,
the linear speed is high, the accuracy of processing is high.
The left and right sawing units can cut profiles simultaneously or separately.
Sawing units can be adjusted to the needed angle between 90°-45°.
This machine equipped with digital display device at additional costs,
so it is the ideal choice for the cutting of aluminum door and window and curtain wall profiles
Main Technique Parameter
1. | Saw cutting length | 480-4500mm |
2. | Saw cutting (W×H) | 230×150mm / 250×135mm |
3. | Main motor power | 2.2Kw×2 |
4. | Main motor rotation speed | 2840 rpm |
5. | Saw blade dimension | Φ508×Φ30×120T |
6. | Saw blade swing angle range | 90°-45° |
7. | Saw blade feeding speed | 0-3m/min |
8. | Saw blade returning speed | 2-3m/min |
9. | Working air pressure | 0.6-0.8Mpa |
10. | Overall dimension (L×W×H) | 5750×1300×1360mm |
11. | Weight | 1500Kg |
