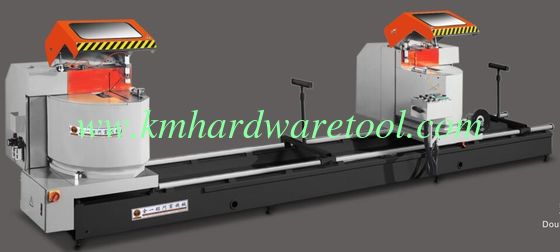

Free Shipping KE-383A Double Mitre Saw In Heavy Duty
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Saw Cutting Length: | 480-4500mm | Saw Cutting: | 230x150mm |
|---|---|---|---|
| Main Motor Power: | 3.0KW X 2 | Main Motor Speed: | 2840r/min |
| Saw Blade Size: | 500x30x120T | Saw Feeding Speed: | 0-3m/min |
| Saw The Return Rate Of: | 2-3m/min | Saw Blade Swing Angle: | 90-45 |
| Table Can Be Rotated Angle: | 0-45 | Working Pressure: | 0.6-0.8Mpa |
| Working Voltage: | 380v | Overall Dimension: | 5850x1310x1360mm |
| Weight: | 1800kg |
1) Utilizes imported hard alloy saw blade for durability and high precision
2) The left and right sawing units can cut aluminum profiles simultaneously or separately
3) The two sawing units can both cut any angle between 90-degree and 45-degree referencing profile axis
4) The left and right worktables can be rotated between 0-degree and 45-degree horizontally (can be clamped with clamping plate)
5) Angle swinging, rotating and locking devices are controlled by pneumatic valves, useful and safe
6) Counter can displays the quantity of the processing profile in time
7) Automatic protection device provides reliable safeguard for operator
MAIN TECHNIQUE PARAMETER
| 1. | Saw cutting length | 480-4500mm |
| 2. | Saw cutting (W×H) | 215×150mm / 240×135mm |
| 3. | Main motor power | 2.2Kw×2 |
| 4. | Main motor rotation speed | 2840 rpm |
| 5. | Saw blade dimension | Φ508×Φ30×120T |
| 6. | Saw blade swing angle range | 90°-45° |
| 7. | Worktable swing angle range | 0°-45° |
| 8. | Saw blade feeding speed | 0-3m/min |
| 9. | Saw blade returning speed | 2-3m/min |
| 10. | Working air pressure | 0.6-0.8Mpa |
| 11. | Overall dimension (L×W×H) | 5850×1310×1360mm |
| 12. | Weight | 1800Kg |
