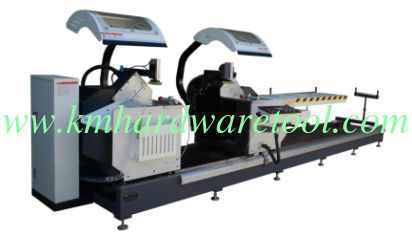

SG-S550B Digital Display Double-head Cutting Saw (Heavy Duty)

SG-S550B Digital Display Double-head Cutting Saw (Heavy Duty)

产品简介Product introduce

The machine is mainly used for cutting aluminum alloy doors and windows, aluminum curtain walls and industrial aluminum cutting. The machine head adopts handwheel to move digital display positioning to ensure processing accuracy and operational stability. The two machine heads can achieve 45 degrees and 90 degrees. The cutting angle, manual control of the cylinder swing angle, the machine operation is simple and easy to understand.

技术参数Technique data

1,机器电源power................................3相380V/50HZ

2,机器总功率Total power.......................................... 6.2KW

3,锯片电机功率motor power ..............................2X3KW

4,锯片转速blade rotary speed.......................2840r/ min

5,定位精度positioning tolerance.....................±0.02 mm

6,摆角精度Tilting tolerance...............................±3’

7,切割尺寸(wxh)cutting size....................90°=220mmX170mm

45°=150mmX125mm

8,切割角度cutting angle................................45°-90°

9,锯片尺寸saw blade........................Ø550mmx30x4.5x144T

10,切割进给速度blade feeding speed...................0-10m/min

11,切割长度cutting length.........................460mm-4500mm

12,机器气压air pressure.............................0.6-0.8Mpa

13,控制器PLC Controller................................14p/24p

14,定位方式Positioning way......................................数显手动定位

15,控制方式control....................................手动控制

16,切削冷却cooling.......................雾化冷却mist cooling

17,机器尺寸(LXWXH).......................6000mmX1300mmX1860mm

18,机器重量machine weigh................................1800kg
