LXWXH: | 5800mmX1700mmX1750mm | Machine Weight: | 1850kg |
---|

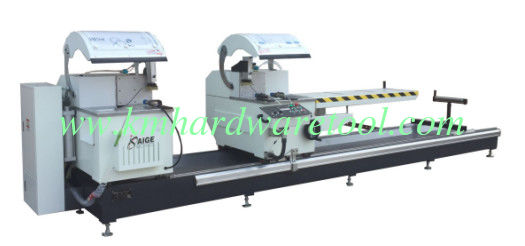

SG-S600S 45-degree digital display double-head cutting saw
Product introduce
The machine is mainly used for cutting aluminum alloy doors and windows, aluminum curtain walls and industrial aluminum profiles. The moving head adopts high-precision linear guides to move and position, and the cutting power head adopts a direct-connected spindle motor to install the saw blade to reduce belt rotation. The impact of vibration ensures the cutting accuracy and the stability of the operation. In order to achieve higher cutting accuracy, the two heads only cut at a fixed 45-degree special angle. The machine runs stably, and the operation is simple and convenient. It is an ideal product to improve production efficiency.
技术参数Technique data
1,机器电源power.....................................3相380V/50HZ
2,机器总功率Total power................................................ 6.1KW
3,锯片电机功率motor power ..................................2X3KW
4,锯片转速blade rotary speed............................2840r/ min
5,定位方式Positioning way..................................................数显表
6,定位精度positioning tolerance...........................±0.1 mm
7,角度精度Tilting tolerance....................................±3’
8,切割尺寸(wxh)cutting size............................150mmX150mm
9,切割角度cutting angle........................................内45°
10,锯片尺寸saw blade...........................Ø600mmx30x4.4x144T
11,切割进给速度blade feeding speed.......................0-10m/min
12,切割长度cutting length............................460mm-4500mm
13,机器气压air pressure.................................0.6-0.8Mpa
14,控制方式control........................................手动控制
15,切削冷却cooling.......................................雾化冷却
16,机器尺寸(LXWXH)...........................6500mmX1100mmX1660mm
17,机器重量machine weight....................................1650kg
