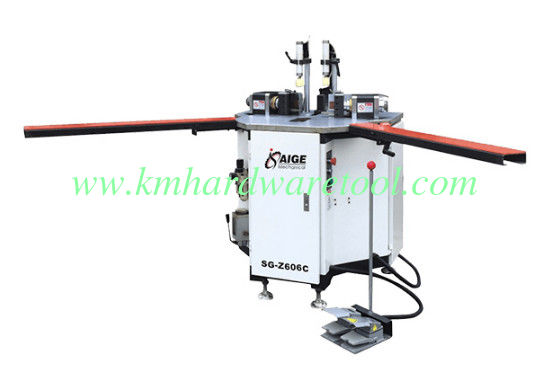

SG-Z606C digital crimping machine

SG-Z606C digital crimping machine

Product introduction: Product introduction

The machine is used for aluminum alloy doors and Windows, aluminum curtain wall, solar energy and industrial aluminum group Angle spell box, colliding with screw to adjust the distance between the two and height, the depth of the colliding of stroke and hit points by a synchronous cylinder rear the handwheel to adjust, set about Angle synchronous cylinder can make level before and after the adjustment to meet the different sizes of 45 degrees Angle block Angle processing, Because the machine adopts the double cylinder synchronous hydraulic system, the adjustment is simple and convenient, it is the ideal equipment to improve the Angle precision and production efficiency.

技术参数Technique data

1,撞刀水平调节Level adjustment for hitting..............0-80mm

1. 撞刀垂直调节Vertical adjustment for hitting..........5-110mm
2. 机器最大压力Max crimping power........................8000kg
3. 撞角速度Crimping speed.............................0-30m/min
4. 机器电源Power.................................3phase380V/50HZ
5. 机器气压Air pressure.........................................０.6-0.8Mpa
6. 机器功率power...........................................2.6KW
7. 控制器(PLC)Controller..................................14位
8. 机器尺寸(LXWXH)Overall size.....................2.2mX1.6mX1.4m
9. 机器重量weight..........................................360kg
